Automated Drilling and Anchor Installation Robot
TAKING PRECISION TO NEW HEIGHTS.
Eliminate Manual Drilling Limits.
With workers limited on drilling time each day, a team of four may only achieve around 3 hours of productive drilling, quickly bottlenecking project progress.
Increase Daily Productivity.
The D3 drilling robot can operate for up to 8 hours per day. Helping you complete more work, reduce labour constraints, and keep projects on schedule.

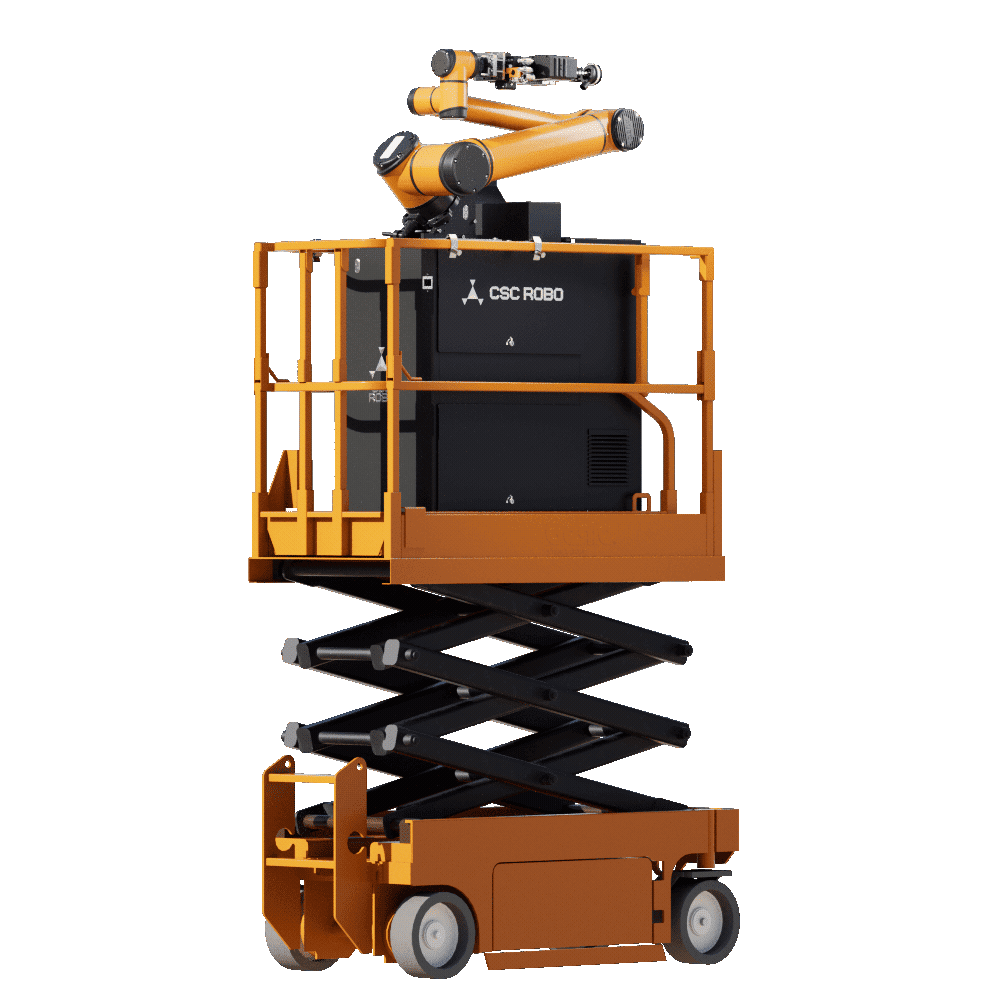

Model D3
Features and Benefits
Drillcorpio (Model D3) is an automatic drilling and anchor installation robot for both walls and ceilings. Equipped with a dust collection system, it can simultaneously drill holes and collect dust, minimising the need for post-work cleanup and improving efficiency. Model D3 is compatible with various construction projects, including E&M installation and civil works. It also eliminates the need for platform modifications.
NO NEED TO MODIFY THE SCISSOR LIFT
FLUSH OR WEDGE ANCHOR INSTALLATION
REBAR COLLISION SENSING
DRILL IN CURVED SURFACES
DUST VACUUMING SYSTEM
Robot Specifications
Drill Size
Ø5-20mm (Standard)
Ø21-40mm (Max)
Battery Duration
Up to 8 hours battery run time
IP Rating
IP53
Drill Depth
≤ 1000mm
Accuracy
± 3mm
Robot Weight
~245kg
Robot Size
770mm(W) * 1210mm(L) *1800mm(H)
Robot to Wall Distance
1100mm-1600mm
Working Range
Ceiling ~2500mmD
Wall ~2000mmD
Drill Target Positioning Methods
Visual Marking
AI Recognition
Manual Selection
Patterning from Mark
Lift Specifications
_edited.png)
Reach Height
9.92m
Platform Height
7.92m
Stowed Height
1.91m
Length x Width
2.32m x 0.84m
Platform Size
2.13m x 0.71m
Extended Size
3.04m x 0.71m
Weight
1890kg
Lift Capacity
227kg
Book A Free Demo
3 hrs • Free Demo
FAQs
Who is the D3 designed for, and which industries would benefit from it?
The Drillcorpio D3 can be utilised across all building industries. Whether Warehouses, Bridges, Tunnels etc.
What does the Drillcorpio D3 do that other robots can't?
Whilst there is no direct competitor to the D3, similar robots do not include the dust-suppression system present on D3, nor are the other robots fully autonomous.
